How Transformers Work: A Detailed Exploration of Transformer Architecture
Bài viết được biên dịch tự động bởi Aha! Mind Socratic Engine. Nguồn bài viết: Link gốc
What Are Transformers?
Transformers were first developed to solve the problem of sequence transduction, or neural machine translation, which means they are meant to solve any task that transforms an input sequence to an output sequence. This is why they are called “Transformers”.
But let’s start from the beginning.
What Are Transformer Models?
A transformer model is a neural network that learns the context of sequential data and generates new data out of it.
To put it simply:
A transformer is a type of artificial intelligence model that learns to understand and generate human-like text by analyzing patterns in large amounts of text data.
Transformers are a current state-of-the-art NLP model and are considered the evolution of the encoder-decoder architecture. However, while the encoder-decoder architecture relies mainly on Recurrent Neural Networks (RNNs) to extract sequential information, Transformers completely lack this recurrency.
So, how do they do it?
They are specifically designed to comprehend context and meaning by analyzing the relationship between different elements, and they rely almost entirely on a mathematical technique called attention to do so.

Image by the author.
Historical Context
Originating from a 2017 research paper by Google, transformer models are one of the most recent and influential developments in the Machine Learning field. The first Transformer model was explained in the influential paper "Attention is All You Need".
This pioneering concept was not just a theoretical advancement but also found practical implementation, notably in TensorFlow's Tensor2Tensor package. Furthermore, the Harvard NLP group contributed to this burgeoning field by offering an annotated guide to the paper, supplemented with a PyTorch implementation. You can learn more about how to implement a Transformer from scratch in our separate tutorial.
Their introduction has spurred a significant surge in the field, often referred to as Transformer AI. This revolutionary model laid the groundwork for subsequent breakthroughs in the realm of large language models, including BERT. By 2018, these developments were already being hailed as a watershed moment in NLP.
In 2020, researchers at OpenAI announced GPT-3. Within weeks, GPT-3's versatility was quickly demonstrated when people were using it to create poems, programs, songs, websites, and more, captivating the imagination of users globally. Observing this shift, Stanford scholars published a 2021 paper aptly terming these innovations "foundation models," underscoring their critical role in reshaping AI.
While proprietary models captured early public attention, a parallel open-source revolution rapidly democratized transformer technology. Platforms like Hugging Face emerged as vital hubs for sharing models, but the landscape fundamentally changed in 2023 with the release of Meta's Llama family. This sparked an "open-weights" movement, proving developers no longer needed to rely on closed corporate ecosystems to build state-of-the-art AI.
Throughout 2024 and 2025, open-source development accelerated fiercely. Models like Meta's massive Llama 3.1 and subsequent Llama 4 series, alongside highly efficient architectures from startups like Mistral and powerful reasoning models from DeepSeek, proved that openly available models could match, and sometimes exceed, the performance of proprietary giants.
Meanwhile, closed-source models continued to evolve complex capabilities. GPT-4 in 2023, which introduced multimodal capabilities, and GPT-4o in 2024, which unified text, vision, and audio processing in a single model.
Late 2024 marked another fundamental pivot across the industry with models like OpenAI's o1 series and DeepSeek's open R1, introducing an internal 'chain-of-thought' to reason through complex logic and math before responding.
By late 2025 and into 2026, the landscape shifted entirely from conversational assistants to autonomous systems with the launch of the GPT-5 family, bringing advanced multi-step planning, long-term memory, and robust agentic workflows to enterprise infrastructure.
The shift from RNN models like LSTM to Transformers for NLP problems
At the time of the Transformer model introduction, Recurrent Neural Networks (RNNs) were the preferred approach for dealing with sequential data, which is characterized by a specific order in its input.
RNNs function similarly to a feed-forward neural network but process the input sequentially, one element at a time.
Transformers were inspired by the encoder-decoder architecture found in RNNs. However, Instead of using recurrence, the Transformer model is completely based on the Attention mechanism.
Besides improving RNN performance, Transformers have provided a new architecture to solve many other tasks, such as text summarization, image captioning, and speech recognition.
So, what are RNNs' main problems? They are quite ineffective for NLP tasks for two main reasons:
- They process the input data sequentially, one after the other. Such a recurrent process does not make use of modern graphics processing units (GPUs), which were designed for parallel computation and, thus, makes the training of such models quite slow.
- They become quite ineffective when elements are distant from one another. This is due to the fact that information is passed at each step and the longer the chain is, the more probable the information is lost along the chain.
The shift from Recurrent Neural Networks (RNNs) like LSTM to Transformers in NLP is driven by these two main problems and Transformers' ability to assess both of them by taking advantage of the Attention mechanism improvements:
- Pay attention to specific words, no matter how distant they are.
- Boost the performance speed.
Thus, Transformers became a natural improvement of RNNs.
Next, let’s take a look at how transformers work.
The Transformer Architecture
Overview
Originally devised for sequence transduction or neural machine translation, transformers excel in converting input sequences into output sequences. It is the first transduction model relying entirely on self-attention to compute representations of its input and output without using sequence-aligned RNNs or convolution. The main core characteristic of the Transformers architecture is that they maintain the encoder-decoder model.
If we start considering a Transformer for language translation as a simple black box, it would take a sentence in one language, English for instance, as an input and output its translation in English.

Image by the author.
If we dive a little bit, we observe that this black box is composed of two main parts:
- The encoder takes in our input and outputs a matrix representation of that input. For instance, the English sentence “How are you?”
- The decoder takes in that encoded representation and iteratively generates an output. In our example, the translated sentence “¿Cómo estás?”

Image by the author. Global structure of Encoder-Decoder.
However, both the encoder and the decoder are actually a stack with multiple layers (same number for each). All encoders present the same structure, and the input gets into each of them and is passed to the next one. All decoders present the same structure as well and get the input from the last encoder and the previous decoder.
The original architecture consisted of 6 encoders and 6 decoders, but we can replicate as many layers as we want. So let’s assume N layers of each.

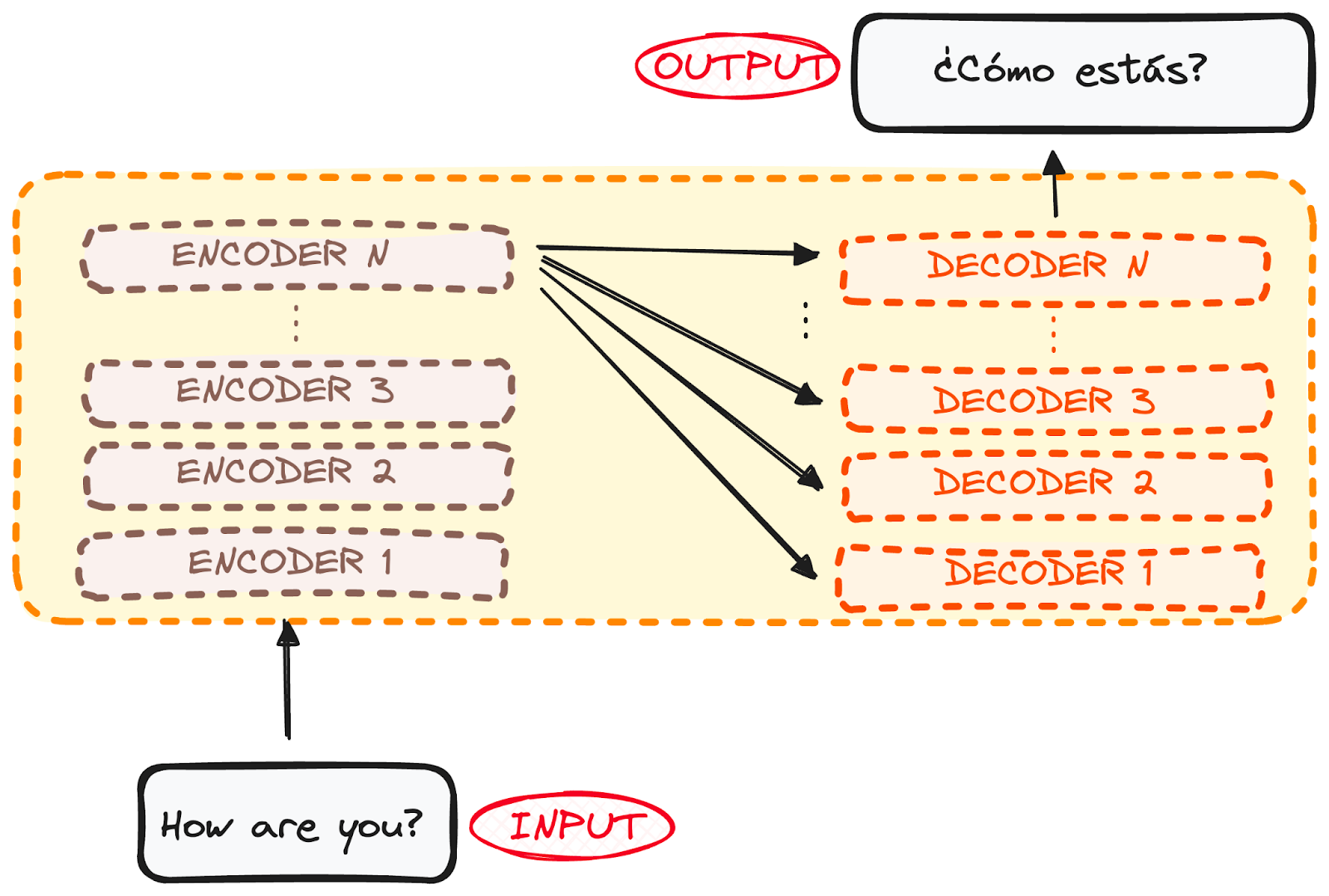

Image by the author. Global structure of Encoder-Decoder. Multiple Layers.
So now that we have a generic idea of the overall Transformer architecture, let’s focus on both Encoders and Decoders to understand better their working flow:
The Encoder WorkFlow
The encoder is a fundamental component of the Transformer architecture. The primary function of the encoder is to transform the input tokens into contextualized representations. Unlike earlier models that processed tokens independently, the Transformer encoder captures the context of each token with respect to the entire sequence.
Its structure composition consists as follows:

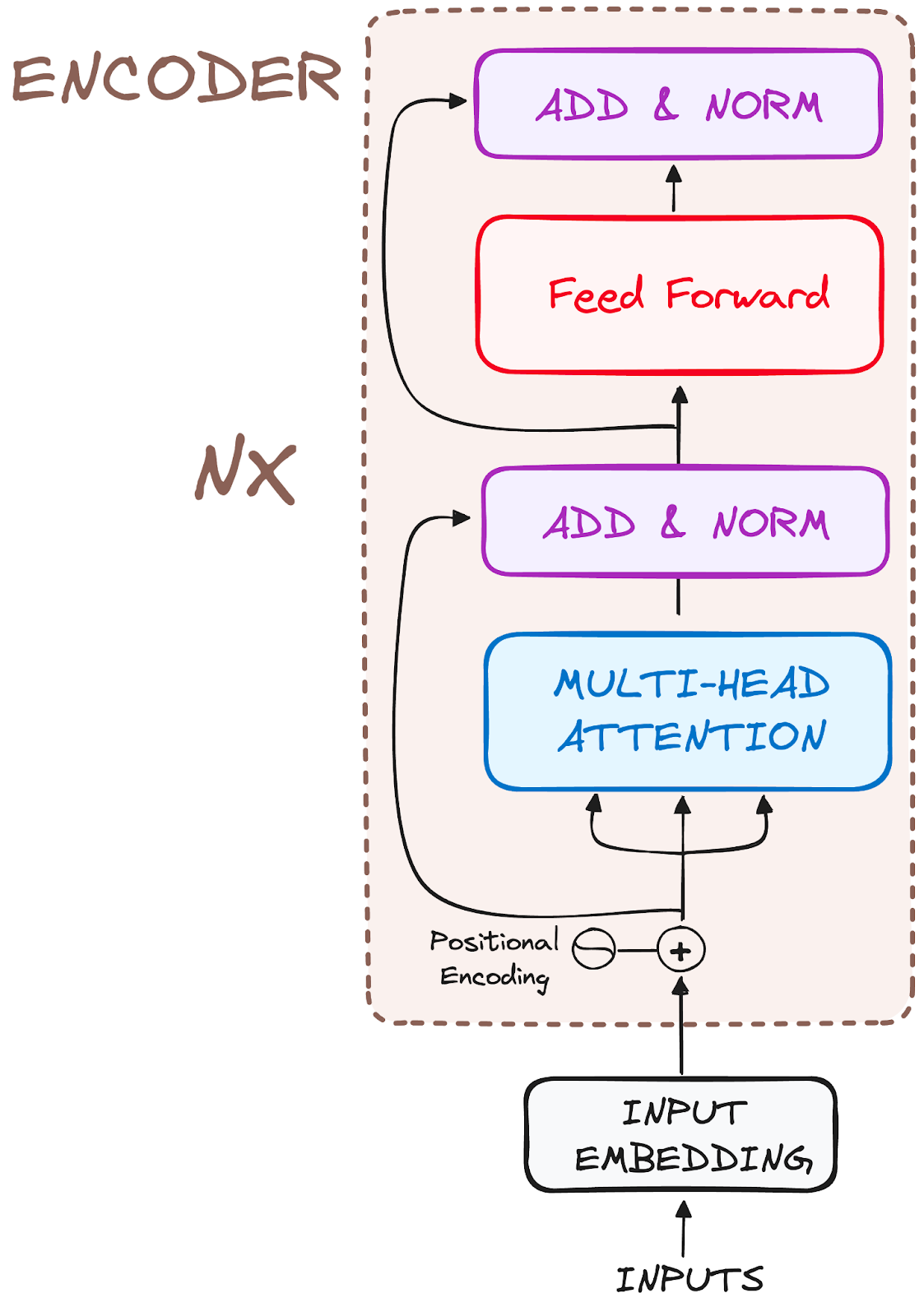

Image by the author. Global structure of Encoders.
So let’s break its workflow into its most basic steps:
STEP 1 - Input Embeddings
The embedding only happens in the bottom-most encoder. The encoder begins by converting input tokens - words or subwords - into vectors using embedding layers. These embeddings capture the semantic meaning of the tokens and convert them into numerical vectors.
All the encoders receive a list of vectors, each of size 512 (fixed-sized). In the bottom encoder, that would be the word embeddings, but in other encoders, it would be the output of the encoder that’s directly below them.

Image by the author. Encoder’s workflow. Input embedding.
STEP 2 - Positional Encoding
Since Transformers do not have a recurrence mechanism like RNNs, they use positional encodings added to the input embeddings to provide information about the position of each token in the sequence. This allows them to understand the position of each word within the sentence.
To do so, the researchers suggested employing a combination of various sine and cosine functions to create positional vectors, enabling the use of this positional encoder for sentences of any length.
In this approach, each dimension is represented by unique frequencies and offsets of the wave, with the values ranging from -1 to 1, effectively representing each position.
